Dual Solex 40 installation

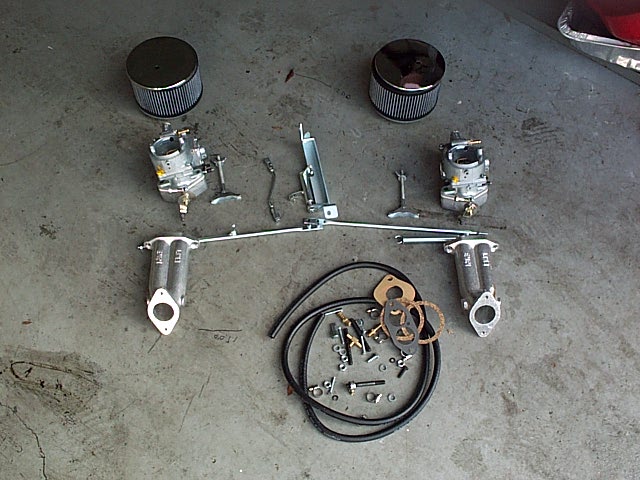

The kit out of the box

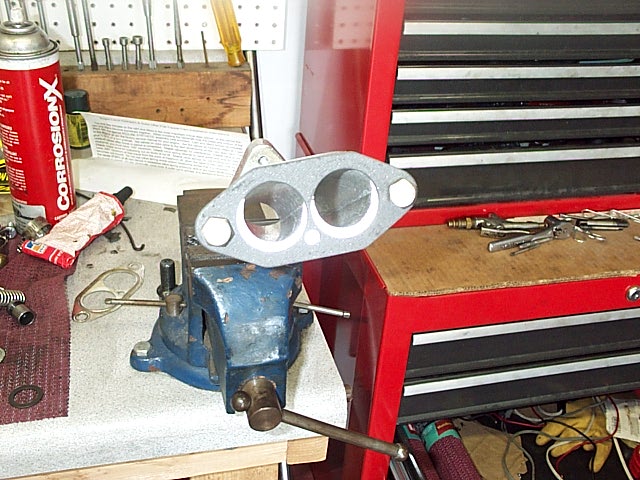

Notice the mismatch between gaskets and intake ports. Future porting will improve performance.

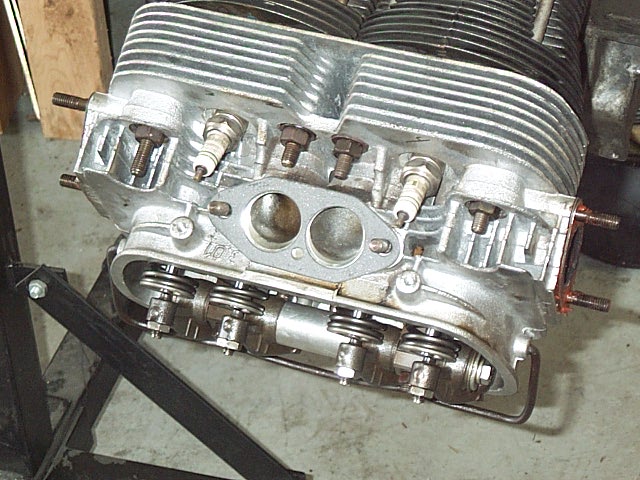

Same issue with heads.  These are 041 heads.

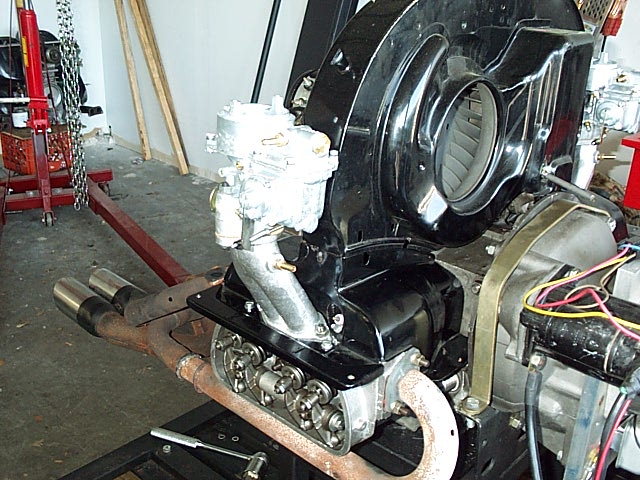

Be sure when mounting vent tube points toward 'front' of engine.

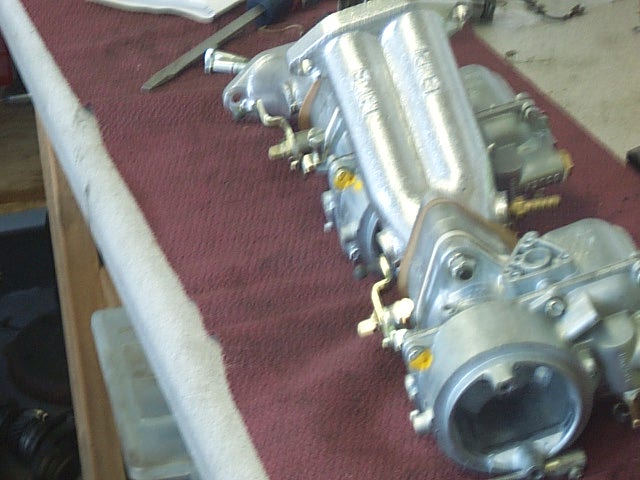

Notice offset on throttle arms on carbs.  This is how they are mounted to manifolds.

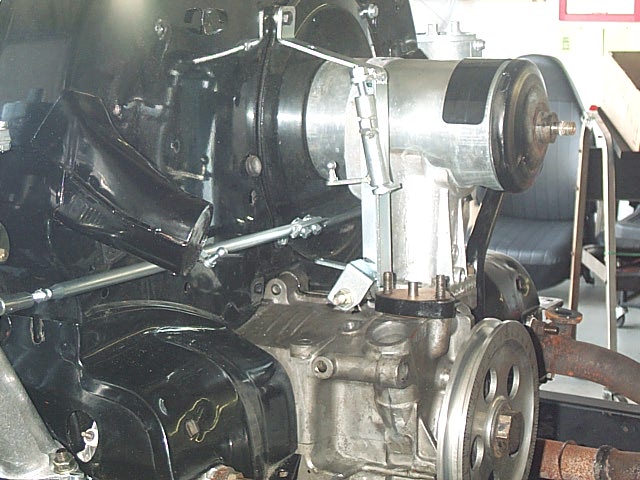

Linkge mounting.  Use washers at top of bracket next to shroud.  May require some bending to get it to mount properly.

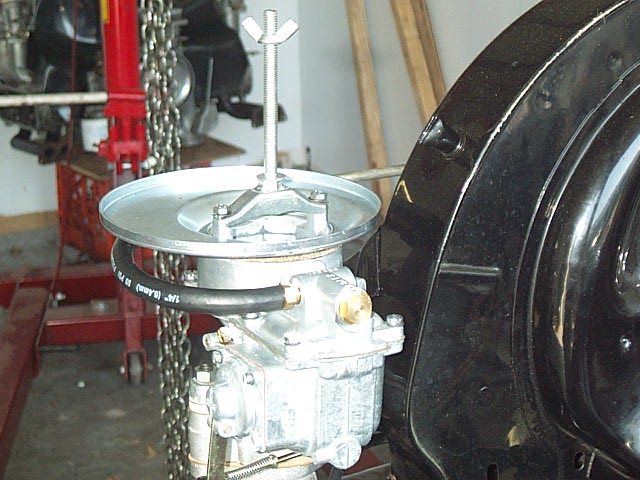

Top of carb with air cleaner bracket installed.
